ENGLAON X Series Wireless 7" Monitor Reverse Camera kit for Caravan Truck Campervan , 12 - 32V

5.0
Rated 5.0 out of 5 stars
2
$309.95

FREE Shipping & 12 Month Warranty included.

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Zip
  • Shop Pay
  • Apple Pay
  • Google Pay
  • Union Pay
  • Afterpay

Enhance your driving safety with our state-of-the-art Wireless DC 12V-32V Reversing Camera & Monitor System. Designed for caravans, motorhomes, and RVs, this system provides crystal-clear visuals and a reliable wireless connection, ensuring smooth parking and reversing even in challenging conditions.
Product Feature Image

High-Resolution Screen for Maximum Visibility

Ultra-Clear 7-Inch Display with Wide Viewing Angle

Our 7-inch display with a 1024 × 600 RGB resolution delivers sharp and vibrant images. With a 450cd/m² brightness, 500:1 contrast ratio, and wide viewing angles (U: 50° / D: 70°, R/L: 70°), you get optimal visibility from various perspectives, enhancing your reversing and parking experience.

Stable and Lag-Free Connectivity

Advanced Wireless Transmission with Low Latency

Powered by an advanced RF transmit chip, this system ensures a transmission range of up to 500 meters in open space and up to 120 meters in real-world conditions. With a 120ms low latency, -89 dBm receiving sensitivity, and frequency hopping technology, enjoy a seamless and interference-free video feed.

120° Field of View & LED-Enhanced Night Vision

High-Performance Camera with Wide FOV & Night Vision

The reversing camera offers a 120° wide-angle field of view, ensuring comprehensive coverage of your surroundings to minimize blind spots. Built to withstand harsh environments, it is waterproof, dustproof, and shockproof, making it ideal for all-weather use. Additionally, the camera is equipped with 4 high-intensity LED lights, enhancing night vision capability for safer reversing in low-light conditions.

Capture and Store Footage for Enhanced Security

Recording Capability

This system supports video recording with SD card storage up to 128GB, allowing you to review and store important footage. (SD card not included in this kit.)

Supports Up to 4 Cameras with Simultaneous Viewing

Multi-Channel System for Maximum Coverage

Expand your visibility with support for up to 4 cameras, allowing you to monitor multiple angles at the same time. (This kit comes with one camera.) This multi-channel capability enhances your awareness of your surroundings, making reversing and maneuvering easier and safer.

WIRELESS DC 12V-32V REVERSING CAMERA & MONITOR SYSTEM
Seamless Parking & Reversing for Your Caravan and RV

Enhance your driving safety with our state-of-the-art ENGLAON X Series Wireless DC 12V-32V Reversing Camera & Monitor System. Designed for caravans, motorhomes, and RVs, this system provides crystal-clear visuals and a reliable wireless connection, ensuring smooth parking and reversing even in challenging conditions.

Key Features

Ultra-Clear 7-Inch Display with Wide Viewing Angle

High-Resolution Screen for Maximum Visibility
Our 7-inch display with a 1024 × 600 RGB resolution delivers sharp and vibrant images. With a 450cd/m² brightness, 500:1 contrast ratio, and wide viewing angles (U: 50° / D: 70°, R/L: 70°), you get optimal visibility from various perspectives, enhancing your reversing and parking experience.

Advanced Wireless Transmission with Low Latency

Stable and Lag-Free Connectivity
Powered by an advanced RF transmit chip, this system ensures a transmission range of up to 500 meters in open space and up to 120 meters in real-world conditions. With a 120ms low latency, -89 dBm receiving sensitivity, and frequency hopping technology, enjoy a seamless and interference-free video feed.

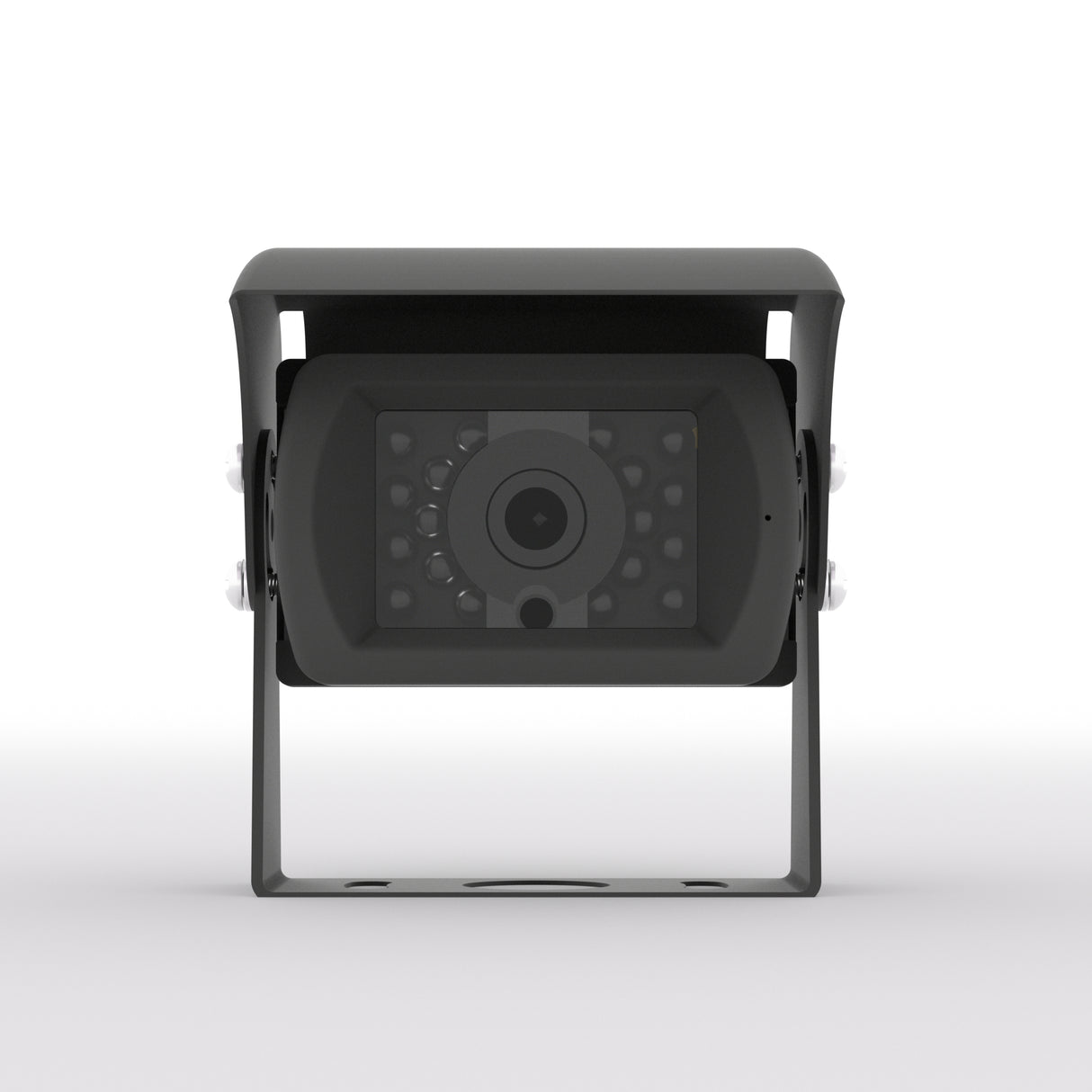

High-Performance Camera with Wide FOV & Night Vision

120° Field of View & LED-Enhanced Night Vision
The reversing camera offers a 120° wide-angle field of view, ensuring comprehensive coverage of your surroundings to minimize blind spots. Built to withstand harsh environments, it is waterproof, dustproof, and shockproof, making it ideal for all-weather use. Additionally, the camera is equipped with 4 high-intensity LED lights, enhancing night vision capability for safer reversing in low-light conditions.

Recording Capability

Capture and Store Footage for Enhanced Security
This system supports video recording with SD card storage up to 128GB, allowing you to review and store important footage. (SD card not included in this kit.)

Multi-Channel System for Maximum Coverage

Supports Up to 4 Cameras with Simultaneous Viewing
Expand your visibility with support for up to 4 cameras, allowing you to monitor multiple angles at the same time. (This kit comes with one camera.) This multi-channel capability enhances your awareness of your surroundings, making reversing and manoeuvring easier and safer.

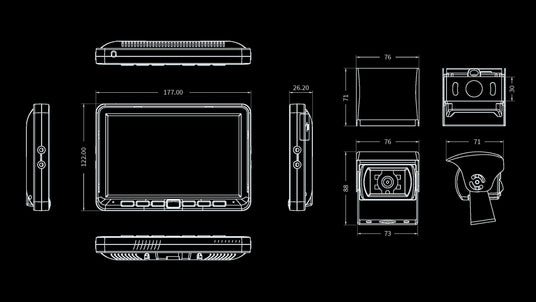

Dimension

  • Display
    7"
  • Resolution
    1024 x 600
  • Brightness
    450cd/m2
  • Contrast
    500:1
  • Viewing Angle
    U: 50° / D: 70°, R/L: 70°
  • Aspect Ratio
    16:9
  • IP Rating
    IP69K
  • Shockproof Rating
    10G
  • Operating Humidity
    85%
  • Operating Temperature
    -20C~ 70C
  • Voltage
    DC12V-32V
  • Frequency Range
    2412-2484MHZ
  • Impedance
    500
  • Speaker
    1.5W/8
